Products

Din3D exporter for ArchiCAD

If you use ArchiCAD and would like to render in a professional visualization program. Use Din3D format for exporting ArchiCAD model and the similar ArchiCAD model structure is available for you in the rendering programs.

Din3D importer for 3ds Max

Din3D files are quickly and simply imported in AUTODESK 3ds Max. Significantly cleanses the geometry of the model thereby reducing the time spent to repair your model. Replacement of model also possible while all the settings remain unchanged.

Din3D importer for C4D

Din3D files are quickly and simply imported in MAXON Cinema 4D. There is a direct link to ArchiCAD. Replacement of changed model is also possible while all the material settings and other changes remain.


0
0
header-image-din3d-exporter-for-archicad

Din3D exporter for ArchiCAD

If you use ArchiCAD and would like to render in a professional visualization program. Use Din3D format for exporting ArchiCAD model and the similar ArchiCAD model structure is available for you in the rendering programs. With the help of the exporter you can further edit the ArchiCAD model anytime in Cinema 4D and 3ds Max. The planning process can be continued in ArchiCAD. If the model has changed a few clicks and the update is possible within the model visualisation programs while all previous settings remain unchanged. (Material definitions, light settings, etc..) Note: Not compatible with AC4D and AC4D+ formats.
Din3D Connection

Features

The following information are saved:

  • Materials
  • Expanded Material properties (optional)
  • Textures (optional, the textures are stored in Din3D file)
  • Layers
  • Elements
  • Stories information
  • Element types (class)
  • Object Information (only names and main parameters)
  • Vertex Points
  • Polygons
  • Polygon UVW coordinates
  • Polygon Normals
  • Lights (optional)
  • Cameras (optional)

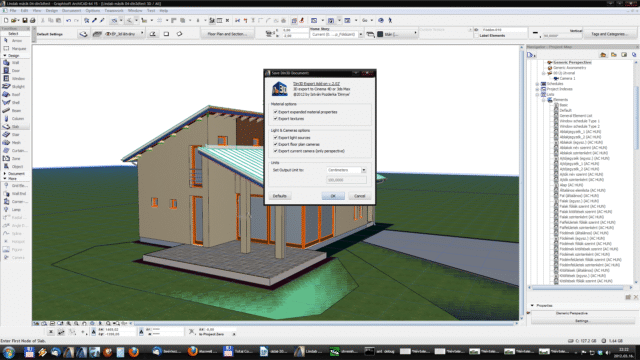

Export Dialog

Download

Actual Version: 2.60
(2024-02-01 Changelog)
Din3D exporter for ArchiCAD is free. Remember that the exporter in itself is good for nothing. You need one of the importers with, as well. For importing you can find demo versions at products:

System Requirements

OS compatibility:

  • Windows
  • Mac OSX

ArchiCAD compatibility:

  • ArchiCAD 18
  • ArchiCAD 19
  • ArchiCAD 20
  • ArchiCAD 21
  • ArchiCAD 22
  • ArchiCAD 23
  • ArchiCAD 24
  • ArchiCAD 25
  • ArchiCAD 26
  • ArchiCAD 27

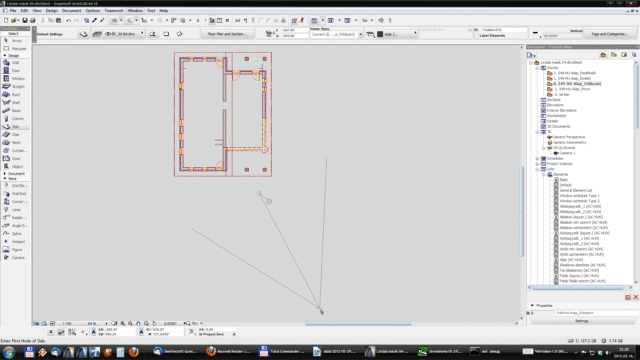

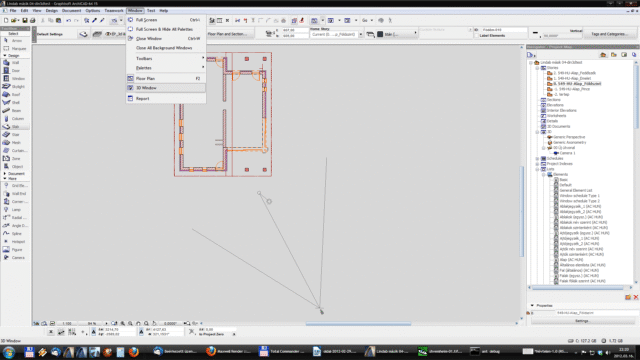

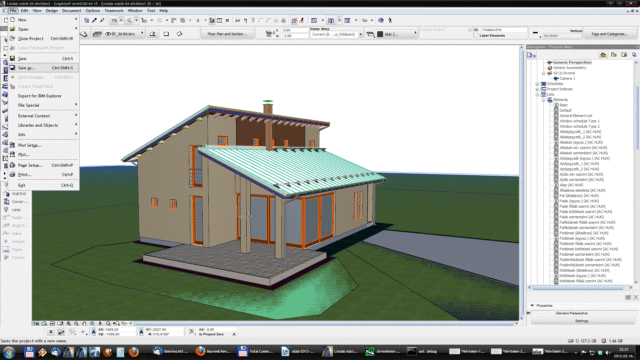

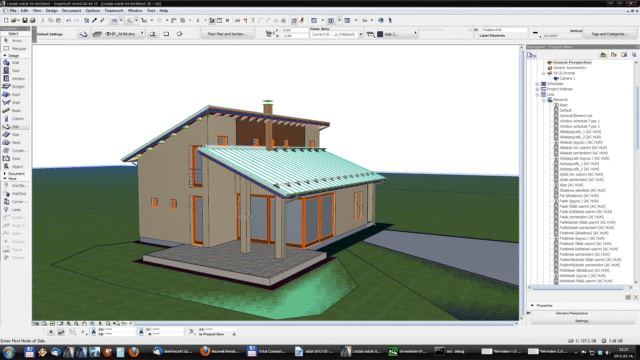

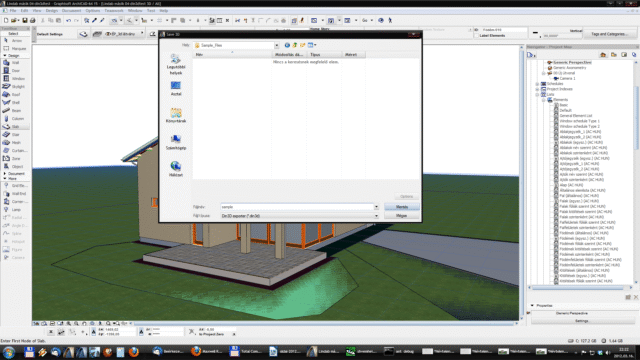

Usage

Trademarks

The copyright of the Din3D plugin is by István Pozderka.
ArchiCAD is registered trademark of Graphisoft.
3ds Max is registered trademark of Autodesk.
Cinema 4D is registered trademark of Maxon.
All other trademarks are property of their respective owners.
0
0
header-image-din3d-importer-for-3ds-max

Din3D importer for 3ds max

Din3D files quickly and simply imported in AUTODESK 3ds Max. It is suggested for those ArchiCAD users who use 3ds max for the model visualisation. It Significantly cleanses the geometry of the model there by reducing the time spent to repair your model. Replacement of model is also possible while all the settings remain the same.

The objective of the development of this file format was that it could, as much as possible, provide the visualization programs with the information of the structure and hierarchy of ArchiCAD beside the 3D model. There is possibility to transfer much more information than with the simple 3ds file format.

Significant speed acceleration in 1.5 version
Din3D Connection

Features

Selective importing The following ArchiCAD’s content can be imported:
  • 3D model
  • Lights
  • Cameras
  • Materials
  • Textures
Usage of different filter levels You would like to see again the 3D model in a meaningful structure. There is no obstacle to it. You can use these filters, either individually or in combination.
  • Stories
  • Classes (wall, ceiling, etc….)
  • Layers
  • Elements
  • Materials
  • In addition, it is possible to import ArchiCAD objects as single objects.
High polygon optimization. The importer tries to minimize errors in the 3D model. It offers the following features for it:
  • Welding vertices
  • Automatic edge calculation
  • Remove Double Faces
  • Reduce Multiple Edges
  • Remove Coplanar Faces (in windows)
  • Remove Zero Area Faces
  • Fix normals after smooth
  • Significantly reduces the number of Open Edges
Others
  • Significant speed acceleration in 1.5 version
  • I use own algorithms, because the 3ds Max built-in was very slow
    • Vertex Welding
    • Smooth Group Calculation
  • Support single or multi Material
  • Gamma corrected Material Colors
  • Vray Wire Color compatible input possible
  • UVW vertex weld
  • Possible use ‘Real World Texture Scale’
  • Presets
  • Scale conversion
  • Unicode support: different language characters can be received correctly from ArchiCAD.

Download

Actual Version: 1.86
(2023-08-04 Changelog)

Download and try Din3D importer plugin for 3ds Max.

In Demo version you can import 10 times, but model update is not possible. Din3D importer for 3ds Max is available now for 59 Euros in webshop.

Remember that the importer plugin itself is good for nothing. To use it, you’ll need the exporter as well. The Din3D exporter for ArchiCAD is available free of charge.

System Requirements

3ds max compatibility:

Usage

Trademarks

The copyright of the Din3D plugin is by István Pozderka.
ArchiCAD is registered trademark of Graphisoft.
3ds Max is registered trademark of Autodesk.
Cinema 4D is registered trademark of Maxon.
All other trademarks are property of their respective owners.
0
0
header-image-din3d-importer-for-cinema-4d

Din3D importer for Cinema 4D

Din3D files are quickly and simply imported in MAXON Cinema 4D. There is a direct link to ArchiCAD. Replacement of changed model is also possible while all the material settings and other changes remain.

The objective of the development of this file format was that it could, as much as possible, provide the visualization programs with the information of the structure and hierarchy of ArchiCAD beside the 3D model. The model was complemented C4D, this information did not lose in the upgrade. Very fast plugin.

Note: Not compatible with AC4D and AC4D+ formats.
Din3D Connection

Features

Selective importing The following ArchiCAD’s content can be imported:
  • 3D model
  • Lights
  • Cameras
  • Materials
  • Textures
Usage of different filter levels You can use these filters, either individually or in combination.
  • Stories
  • Classes (wall, ceiling, etc….)
  • Layers
  • Elements
  • Materials
  • Import ArchiCAD objects as single objects.
  • In addition, it is possible to import ArchiCAD objects as ‘Instances’.
Polygon optimization.
  • The importer can be used the built-in Cinema 4D optimizations (currently)
Others
  • Unicode support: different language characters can be received correctly from ArchiCAD.
  • Fast model update
  • The importer saves the complete import settings.
  • Useful Tags in update method
  • A few useful commands that make it easier for small daily use.
    • Sort by Name
    • Remove Empty ‘Null Objects’

Download

Actual Version: 2.60
(2023-09-23 Changelog)

Download and try Din3D importer plugin for Cinema 4D.
In Demo version you can import 10 times, but model update is not possible. Din3D is available now for 39 Euros in webshop.

Remember that the importer plugin itself is good for nothing. To use it, you’ll need the exporter as well. The Din3D exporter for ArchiCAD is available free of charge.

System Requirements

OS compatibility:
  • Windows
  • Mac OSX
Cinema 4D compatibility:
  • Cinema 4D R16
  • Cinema 4D R17
  • Cinema 4D R18
  • Cinema 4D R19
  • Cinema 4D R20
  • Cinema 4D S21
  • Cinema 4D S22
  • Cinema 4D S23
  • Cinema 4D S24
  • Cinema 4D S25
  • Cinema 4D S26
  • Cinema 4D 2023
  • Cinema 4D 2024

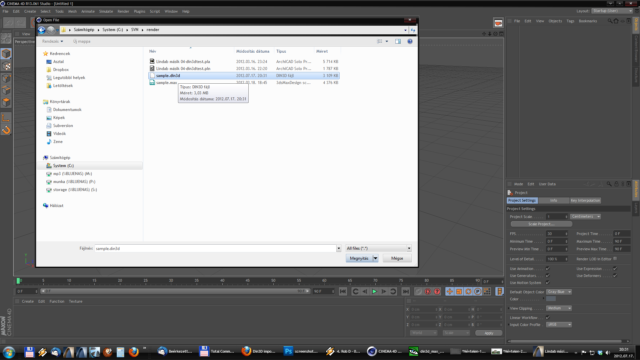

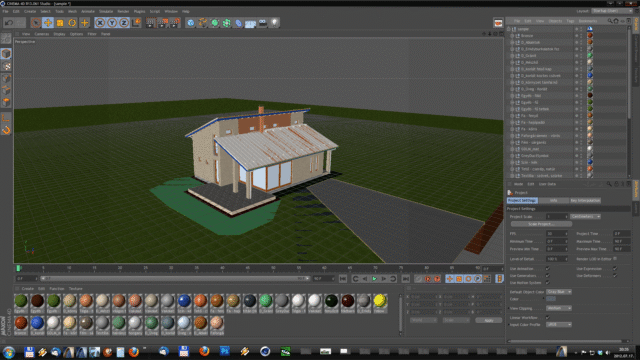

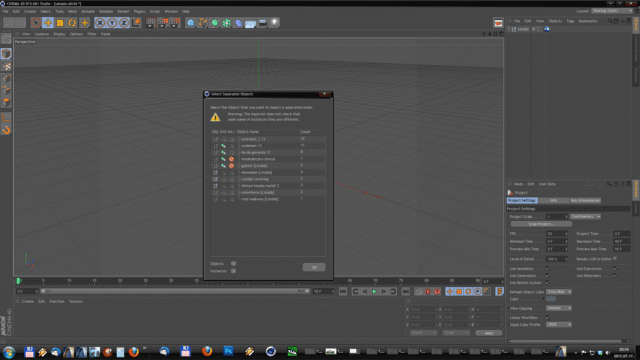

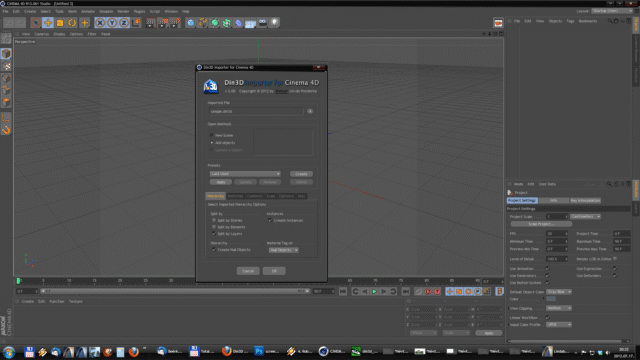

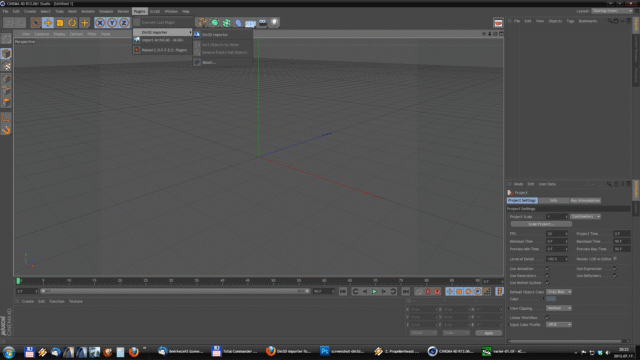

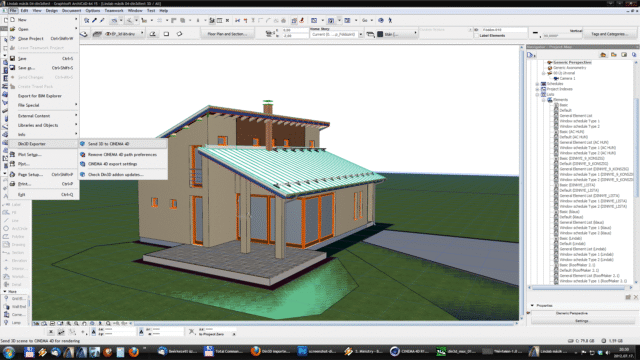

Usage

Trademarks

The copyright of the Din3D plugin is by István Pozderka.
ArchiCAD is registered trademark of Graphisoft.
3ds Max is registered trademark of Autodesk.
Cinema 4D is registered trademark of Maxon.
All other trademarks are property of their respective owners.
0
0

ArchiCAD 18

Hi,

The 2.15 version of the exporter contain the errors.
Please update exporter to new version (2.16).
I apologize for the inconvenience.
Changelog:

  • [Bugfix]: Long material names fix (AC18)
  • [Bugfix]: Material Indexes (AC18)
  • [Bugfix]: Fix Zombie elements (AC18)

I preparing for the new version of exporter. This version will be able transfer C4D materials from ArchiCAD to C4D.

Regards
Dinnye

0
0

Cinema 4D R15

Hi

The Cinema 4D R15 version released in early september from Maxon.
Din3D plugin R14 version completely work in the R15 version. But i complied with R15.
Only one improvement included: Sort in Separated Objects dialog.
The downloadable files put in storage cloud. Let us know if problem detected.

Regards
Dinnye

0
0

Changes in the Max plugin license terms

Hi!

As many people asked that the use plugin on your workstation as well on your laptop, so I changed the registration process.
The registration on Éptár webpage is no longer necessary.

The plugins connect itself to hardware (as in previous versions), but more flexible.
Allowed types: ssd, internal disk, external usb storage, pendrive.
If you choose a removable drive, then you can use the plugin at your workstation or laptop (of course not at the same time).

The new version is a significant increase import speed. Completely re-written the plugin, in many places internal Max functions are proven to be too slow.

Int the ArchiCAd and C4D plugin have made chages and bugfixs.

Regards
Dinnye
